Charcoal Wheel Grinding Mill for Charcoal Powder Mixing and Pre-Compression
Our charcoal wheel grinding mill is an auxiliary machine used for mixing, grinding, and compacting charcoal powder before…

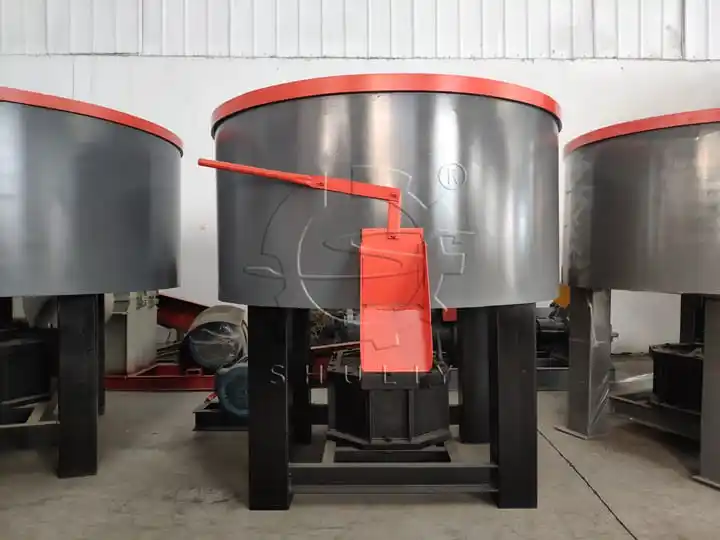

Our charcoal wheel grinding mill is an auxiliary machine used for mixing, grinding, and compacting charcoal powder before it enters a charcoal forming machine. Also known as a charcoal powder grinding and mixing machine, it is mainly used to prepare charcoal powder and binder for subsequent briquetting or molding.
Compared with an ordinary mixer, the charcoal wheel grinder is equipped with a pair of grinding wheels. While the wheels roll through the material, they mix the charcoal powder and binder and apply pressure to the material at the same time. This combination of mixing, grinding, and pressing helps prepare the material for further forming.
What Is a Charcoal Wheel Grinding Mill?
The charcoal wheel grinding mill has a structure similar to a flat-bottom mixing machine, but its working chamber is equipped with heavy grinding wheels.
The grinding wheels continuously roll over the material during operation. This creates a combination of mixing, grinding, and compression.
The machine can be used to process charcoal powder together with water and binder. If relatively large charcoal particles are mixed into the powder, the grinding wheels can also crush and grind these particles during the mixing process.
Main Functions of The Wheel Grinding Charcoal Mixer
- Mix charcoal powder with binder and water.
- Grind relatively large charcoal particles in the material.
- Apply pressure to the mixed material.
- Reduce air between charcoal powder particles.
- Improve the compactness of the prepared material.
- Help the charcoal powder and binder combine more evenly.
- Provide a pre-compression step before charcoal molding.
How Does the Charcoal Wheel Grinder Work?
The working process is relatively straightforward.
Charcoal powder + binder + water → Mixing → Grinding → Rolling and compression → Prepared material → Charcoal Forming machine
After the raw materials are added into the working chamber, the grinding wheels rotate and roll over the mixture. The material is repeatedly moved, mixed, and compressed as the wheels pass through it.
The grinding action can break down larger charcoal particles, while the pressure generated by the wheels helps reduce the amount of air between the particles. At the same time, the binder is distributed more evenly throughout the charcoal powder.
As a result, the processed material becomes more compact and better prepared for the next forming process.
Mixing and Grinding in One Machine
One of the main differences between a charcoal wheel grinding mill and a conventional mixer is the presence of the grinding wheels.
A conventional mixer mainly focuses on moving and mixing materials. The wheel grinding mill adds a mechanical grinding and pressing action.
| Fungsi | Conventional Mixer | Charcoal Wheel Grinding Mill |
| Charcoal powder mixing | ✓ | ✓ |
| Binder mixing | ✓ | ✓ |
| Grinding larger particles | Limited | ✓ |
| Rolling and pressing | Limited | ✓ |
| Reducing air between particles | Limited | ✓ |
| Pre-compression | Limited | ✓ |
The actual processing effect depends on the raw material, particle size, moisture content, binder, and operating conditions.
Why Use a Wheel Grinding Mill Before Charcoal Forming?
Charcoal powder usually needs to be properly mixed with a binder before entering a charcoal forming machine. If the binder is not distributed evenly, the material may not have consistent forming characteristics.
The wheel grinding process provides several types of preliminary treatment. This preliminary processing can also help reduce the workload and wear of some vulnerable components of downstream forming equipment.
Applications of Charcoal Wheel Grinding Mill
The charcoal powder grinder is mainly used as an auxiliary machine in charcoal and biomass molding processes.
1. Hookah Charcoal Production
For hookah charcoal production, the wheel mill can be installed between the charcoal powder preparation process and the forming machine.
A typical process is:
Carbonization → Crushing → Grinding/Mixing → Hookah Charcoal Forming → Drying → Packing
The mixed and compressed material can then be sent to a hookah charcoal press or tablet press for further forming.
2. BBQ Charcoal Production
The machine can also be used in barbecue charcoal production.
A production process may include:
- Carbonization furnace
- Charcoal crusher
- Conveyor
- Charcoal Wheel Grinding Mill
- Charcoal forming machine
- Mesin pengering
- Charcoal Packing machine
The exact equipment configuration can be adjusted according to the raw material and final charcoal product.
Charcoal Wheel Grinding Mill for Different Forming Machines
The processed material can be used with different types of charcoal forming equipment, depending on the final product.
For example:
Wheel Grinding Mill → Shisha Charcoal Machine
Suitable for producing small hookah or shisha charcoal pieces.
Charcoal Wheel Grinder → Charcoal Briquette Machine
Suitable for preparing material before briquette forming.
Wheel Grinding Charcoal Mixer → Charcoal Ball Press
Suitable for preparing charcoal powder before ball-shaped briquette production.
The wheel mill therefore works mainly as a pre-processing machine, rather than as the final forming equipment itself.
How to Choose a Charcoal Wheel Grinding Mill?
Before purchasing a charcoal powder grinder, several factors should be confirmed:
Raw Material
Provide information about the type of charcoal powder, particle size, and whether larger particles are present.
Moisture and Binder
The amount and type of binder, as well as the moisture content of the mixture, can affect the mixing and forming process.
Required Capacity
The required hourly output determines the appropriate machine size and configuration.
Produk Akhir
Different products may require different forming machines after the wheel mill, such as:
- Hookah charcoal
- BBQ charcoal
- Charcoal briquettes
- Charcoal balls
- Other customized charcoal shapes
Downstream Equipment
The wheel mill should be matched with the following forming equipment according to the final product. A complete production line may also include crushing, drying, conveying, and packing equipment.
Charcoal Wheel Grinder in a Charcoal Production Line
The charcoal wheel grinding mill is generally installed between the charcoal powder preparation process and the forming process.
A basic charcoal molding process can be arranged as:
Raw Material → Carbonization → Crushing → Charcoal Powder Preparation → Wheel Grinding & Mixing → Forming → Drying → Packing
For a hookah charcoal production line, the final forming equipment can be replaced with a hookah charcoal press. For BBQ charcoal, a briquette or other charcoal forming machine can be selected according to the required product shape.
This arrangement allows the wheel mill to serve as a preparation stage between powder processing and final molding.
Get a Charcoal Wheel Grinding Mill for Your Production
Looking for a suitable charcoal powder grinder for charcoal powder mixing and pre-compression? We can recommend a suitable model based on your raw material, required capacity, binder, moisture content, and final charcoal product. Contact us to discuss your requirements and get a suitable machine configuration for your charcoal production process.
