来自澳大利亚的轮胎处理机案例：5–6吨/小时轮胎回收解决方案
Tire processing machine solutions are essential for efficiently handling end-of-life tires and converting them into reusable rubber blocks….
Tire processing machine solutions are essential for efficiently handling end-of-life tires and converting them into reusable rubber blocks. Recently, we successfully customized a complete tire recycling plan for a client from Australia who required processing of passenger car and truck tires with diameters below 1200mm into blocks smaller than 10cm.
This project is a typical example of how we design a solution based on specific customer needs, from raw material size to final output specification and capacity requirements.
Customer Requirements: Clear Goals for Tire Size and Output
Our Australian customer needed to process:
- Tire type: Passenger car and truck tires
- Tire diameter: ≤1200mm
- Final output size: ≤10cm rubber blocks
- Expected capacity: 5–6 tons per hour
- Voltage requirement: 415V, 50HZ, 3 phase
Before placing the order, the customer visited our factory for an on-site inspection, discussed technical details face-to-face, and confirmed the final configuration after checking the machine structure and production process.
Customized Tire Processing Machine Solution
After detailed communication, our sales manager Sunny recommended a complete line configuration:

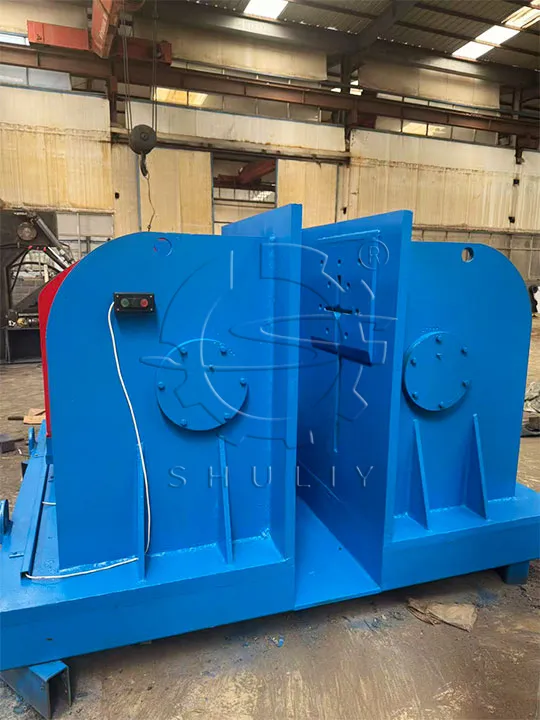

1. Double Hook Double-Sided Wire Drawing Machine
The customer specifically requested to pull out steel wire beads from both sides of the tire simultaneously.
We recommended our double hook double-sided wire drawing machine, which is designed for 900–1200mm tires.
Main parameters:
- Power: 22kW
- Processing tire size: 900–1200mm
- Output: 60–120 pieces/hour
- Weight: 6.5 tons
This machine efficiently removes the steel wire rings from both sides, reducing wear on downstream shredding equipment and improving overall processing efficiency.

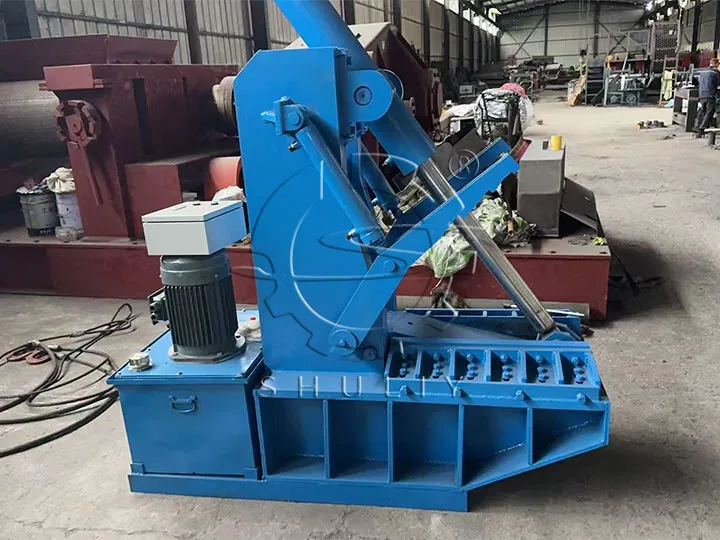

2. Tire Cutter Machine
After removing the steel beads, the whole tire must be cut into smaller pieces to ensure smooth feeding into the shredder.
The tire cutting machine helps:
- Reduce tire size quickly
- Improve shredding efficiency
- Lower equipment load
This step ensures stable and continuous operation of the full tire processing machine line.

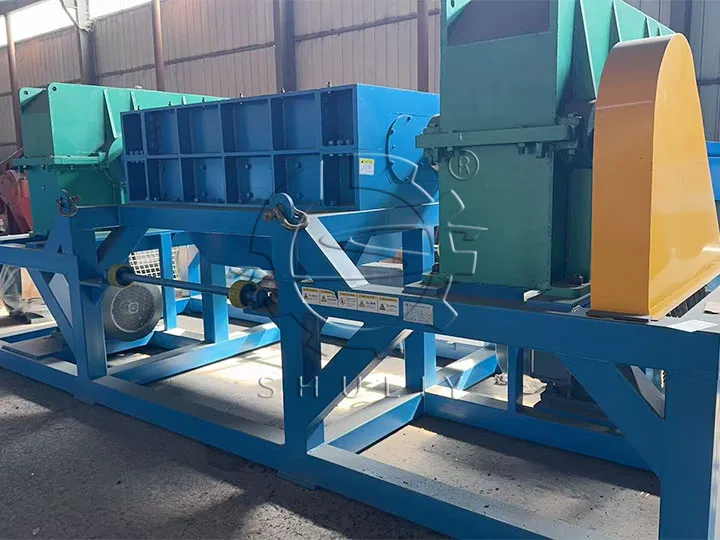

3. Double Shaft Shredder (Model SL-1500)
The core equipment of this tire processing machine line is the double shaft shredder.
Main parameters:
- Model: SL-1500
- Motor power: 55kW × 2
- Capacity: 5–6 tons/hour
- Blade diameter: 550mm
- Blade thickness: 80mm (customizable)
- Number of rotating blades: 19
- Shaft speed: 8–11 r/min
This heavy-duty shredder reduces tire blocks into pieces smaller than 10cm, meeting the customer’s final output requirement. The slow-speed, high-torque design ensures stable operation when processing large truck tires.
Complete Process Flow
The final confirmed configuration is:
Tire Wire Drawing Machine → Tire Cutter → Double Shaft Shredder
With this combination, the customer can efficiently process ≤1200mm tires into ≤10cm rubber blocks at a stable output of 5–6 tons per hour.
Factory Visit and Order Confirmation
Before confirming the order, the Australian client visited our factory to:
- Inspect the tire processing machine structure
- Check blade materials and manufacturing details
- Confirm motor brands and voltage configuration
- Finalize layout and production details
After technical confirmation, the client signed the contract and placed the order.
Reliable Tire Processing Machine for Large Tire Recycling
This Australian project demonstrates how a properly configured tire processing machine line can achieve high efficiency, stable output, and precise final size control.
If you are looking to process passenger or truck tires into rubber blocks, we can customize a suitable solution based on:
- Tire size
- Required output size
- Hourly capacity
- Local voltage standards
Contact us today to get a professional tire processing machine solution and quotation tailored to your recycling project.
